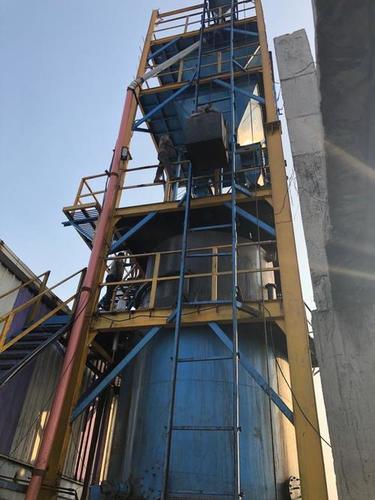

Coal gasifier plant

Get a Price/Quote

Product Details:

Size variant
Color no specific
Height 20 Meter (m)
Length variant
Usage industrial
Product Type Gasification
Weight variant set to set
Supply Ability : 1 Per Month
Click to view more
Share Your Product:

Ask A Question Send Inquiry

Product Specifications

Application thermal and power
Size variant
Color no specific
Capacity 30000 Kg/day
Height 20 Meter (m)
Shape symmetric
Length variant
Usage industrial
Material steel
Product Type Gasification
Weight variant set to set
Width variant

Trade Information

Payment Terms Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cheque
Supply Ability 1 Per Month
Delivery Time 45 Days
Main Export Market(s) Africa, Eastern Europe, South America, Australia, Asia
Main Domestic Market All India

Product Description

Gasifier converts biomass into a gaseous form called producer gas through different chemical reactions like dehydration, pyrolysis, combustion/oxidation and reduction in the presence of red hot charcoal. The last step, the heart of gasification, ultimately converts carbonaceous compounds of biomass into carbon monoxide, hydrogen, methane and carbon dioxide. The key factor for the reaction is carbon (C), hydrogen (H), nitrogen (N), oxygen (O) and sulfur (S) content of the biomass and gasifying agents used: air, oxygen or steam. The amount of hydrogen can be increased by using steam as a gasification agent and amount of carbon monoxide can be increased by using oxygen as a gasification agent. 1 kg of biomass having calorific value in the range of 3500-4500 kcal/kg can generate around 2.5-3.0 Nm3 producer gas having calorific value of 1000-1200 kcal/Nm3.
